Car ECM Hardware and Programming Course

The Automotive car ECM Programming course aims to equip students with the skills to diagnose and resolve programming issues in vehicles. Students will learn about vehicle diagnostics, including On-Board Diagnostics (OBD), and how to use diagnostic tools and software to identify and fix problems. The course covers vehicle control systems, such as engine management, braking, steering, and injector coding, teaching students how to program and enhance these systems for better functionality and security. Additionally, students will gain an understanding of the design and components of modern vehicles, including the drivetrain, chassis, electrical systems, and communication systems, preparing them to handle a wide range of automotive programming challenges.

Car ECM Hardware and Programming Course Overview

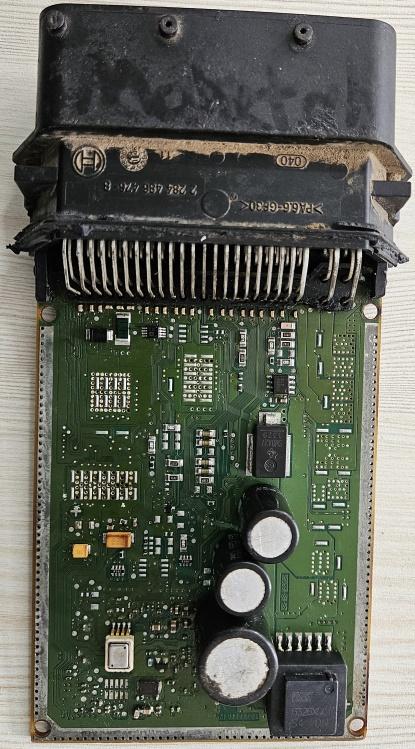

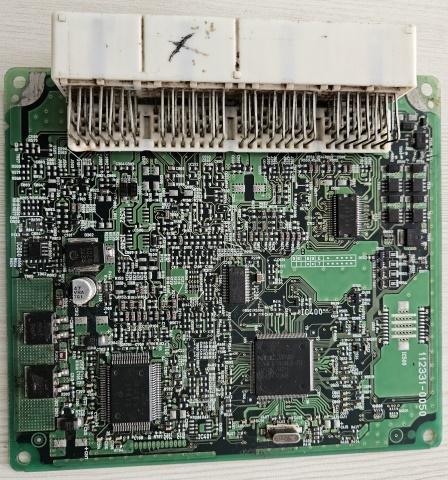

How to open ECM and basic knowledge of ECM

Introduce Multi meter
- How to Measure AC/DC Voltage?
- How to Measure Current?
- How to Measure Resistance?
- How to use continuity mode in multi meter?

Introduce basic Electronics
- Series/parallel
- AC/DC Current
- AC/DC Voltage
- Resistance
- Capacitance

Component Knowledge
- Resistor
- Capacitor (Polar/Non Polar)
- Inductor
- Diode (Single/Dual Diode)
- Transistor
- MOSFET
- Regulator
- Crystal Oscillator

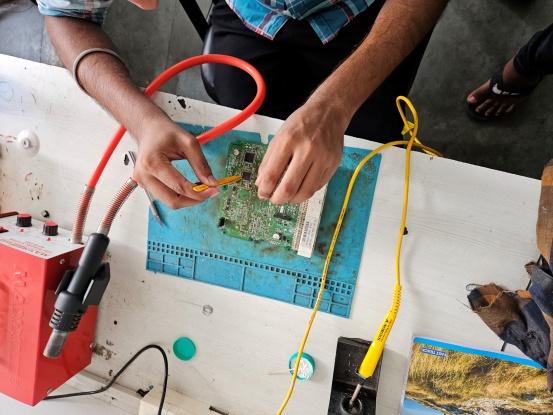

SMD Rework of small components
- Diode
- Resistor
- Non Polar
- Etc.

SMD Rework of medium components
- Transistor
- MOSFET
- Regulator
- Small ICs (Eeprom, Regulator ICs, Etc.)
- Capacitor
- Etc.

SMD Rework of multi components
- Big ICs
- MCU
- 2 Side Leg ICs
- 3 Side Leg ICs

Basic knowledge of ECM hardware offline tracking
- Ignition Circuit
- Communication Protocol Circuit
  - Can High
  - Can Low
  - K-Line
- 5V Reference Circuit
- Sensors Line
  - Rail Pressure
  - Crankshaft Position Sensor
  - Cam Shaft Position Sensor
  - Accelerator Position Sensor 1 and 2
  - Mass air flow
  - Intake air temperature sensor
  - Oil Pressure Sensor
  - Coolant Temperature Sensor
  - Etc.
- Actuators Line
  - Fuel Pump
  - Radiator Fan
  - Fuel Pump Actuator
  - Engine Indicator Lamp Circuit
  - Injector Circuit (Low Section, High Section)
  - AC Compressor Relay
  - Main Relay
  - Etc.
- 12V Circuit
- Odometer Gauge signal from ecm Circuit

Basic knowledge of ECM hardware offline tracking
- Onboard Voltage (Injector High Voltage, 5V, 3.3V, 2.5V, 1.5V, etc.)

Programming

Introduction of K-tag
- Vehicle List
- Protocols

How to read and write ECM.
- Via Boot Mode

Introduction of Kt200
- Boot mode
- Bench mode
- OBD mode

Introduction of Kess-V2
- OBD mode on bench by used of JEMAT ECU Tester
- OBD mode on Vehicle
- Kess-V2 boot mode

KEY PROGRAMING
- On table with JEMAT (By using Programming tool)
- On Table with JEMAT (By using scanner)
- On Vehicle (By using Programming tool)
- On Vehicle (By using Scanner)

How to check cluster Gauge motor work or not work on table.

How to calibrate cluster gauge motor by scanner?

How to correct cluster mileage use by tool?

Remote programming.
- Aftermarket Central Lock Module
  - Nippon
  - Crosslink
  - Minda
  - Autocope
  - Etc.
- BCM
  - Scanner option
  - Programing option

Key cutting
- Side Cutting Machine
- Ultra Cutting Machine
- Auto Machine

G-auto Probe
- Voltage
- Frequency
- Duty Mode

How to use singsing probe tool
- Injector
- Relay
- Dynamo

How to operate full option used JETAT
- ECM
- ECM Kit
- EPS
- Etc.

How to use Scanner.
- Read DTC
- Clear DTC
- Read Data Stream
- Actuate test
- Special Function

How to use vvdi mini
- Transponder
  - Generate Transponder
  - Transponder Check
  - Cloning
  - Reset
- Remote
  - Generate Remote
  - Frequency Check
  - Cloning
  - Reset

How to use relay tester?

ECM flashing

Certification and Recognition

JustAuto Solution’s Certification – ISO Certified,Startup India Recognized, MSME Recognized, Skill India Recognized.

JustAuto Solution is authorised and affiliated Training Partner/Centre of Automotive Skill Development Council (ASDC) and Skill India

Engine Control Module (ECM) repair classes – ECM maintenance classes – Automobile computer repair classes – ECM technician training classes – Vehicle computer repair classes – ECM maintenance training – Car regulators and capacitor course – Car resistors course – Car key making course

एंजिन कंट्रोल मॉड्यूल (ईसीएम) रिपेयर क्लासेस – ईसीएम मेंटेनेंस क्लासेस - ऑटोमोबाइल कंप्यूटर रिपेयर क्लासेस - ईसीएम तकनीशियन ट्रेनिंग क्लासेस - वाहन कंप्यूटर रिपेयर क्लासेस - ईसीएम मेंटेनेंस ट्रेनिंग - ईसीएम मेंटेनेंस ट्रेनिंग - कार रेगुलेटर्स और कैपेसिटर्स कोर्स - कार रेजिस्टर्स कोर्स - कार की चाबी बनाने का कोर्स

Course Fee

₹50000.00 /- (including GST)

Duration

30 Days

Hostel Facility

7,000/- per Month including food

Location

JustAuto Solutions Pvt. Ltd., Plot No: B1, B2, B3/15, Electronics Estate, GIDC, Sector 25, Gandhinagar, Gujarat
